Small diameter tube precision laser cutting machine

Home »  » Small diameter tube precision laser cutting machine
Contact us

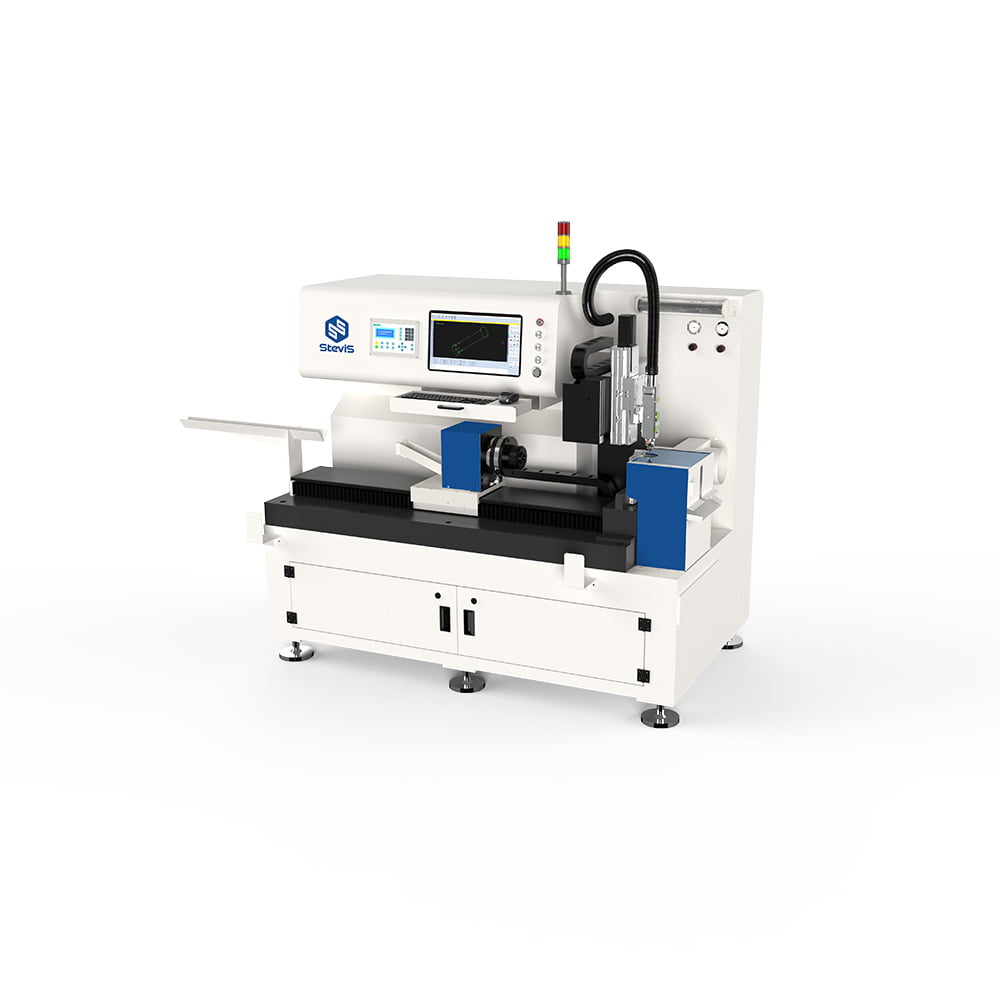

ultra-high-speed-tube-precision-laser-cutting-machine
Advantages
Parameter

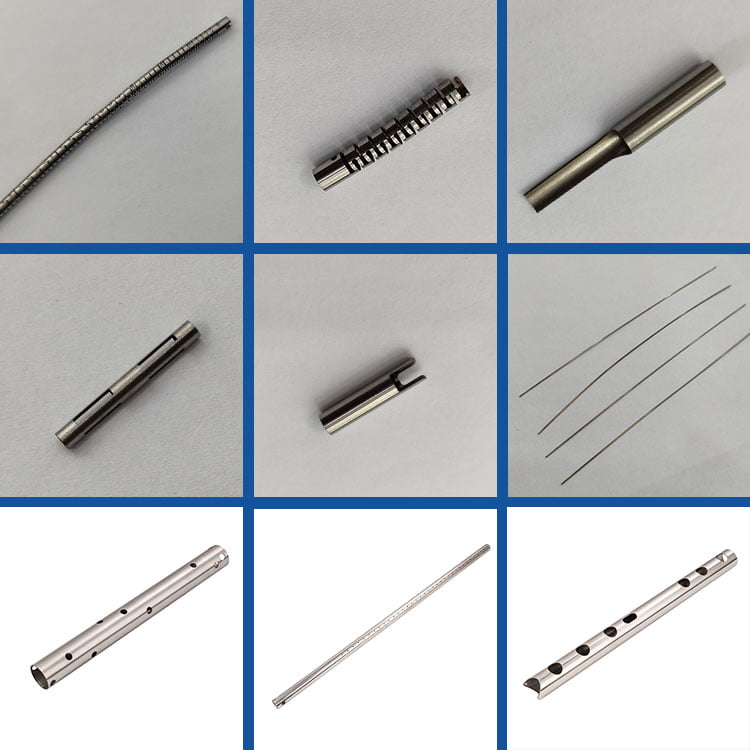

Sample
Video
FAQ
  • High speed with acceleration 1.6G, 5-6 times faster than traditional cutting machine.
  • Support 24 hours running Specially for capillary tube & precision tubes high speed cutting.
  • Use linear motor to ensure high speed cutting, no edge burning and less cutting slag.
  • Use direct drive motor for higher accuracy, faster response, high running speed and low noise.
  • Use marble platform structure ensure ±0.03mm good cutting accuracy.
  • Suitable for medical parts,e-cigarette,precision parts,electronic product accessories(e.g.stylus pen), artificial jewelry, water purifiers, air conditioners, high-end kitchen utensils, commercial cabinets, mobile phone holders etc.
  • Optional special automatic loader for OD above 5mm.
Model No.ST-FL40F
Cutting diameterRound tube 2-24mm, square tube 1.5*1.5-17*17mm
Machine Weight1.5Ton
Tube lengthMaximum 6200mm
Minimum cutting length1mm
Cutting accuracy±0.03mm
Maximum Acceleration1.6G
Spatter reducing stroke1200mm
Voltage380V 50Hz 3Phase (can be customized)
Fiber laser sourceMAX/BWT
Fiber laser cutting headRaytools/OSPRI
GantryAviation aluminum
Control systemFSCUT
Servo systemServotop
Linear motorServotop
Pneumatic systemAIRTAC/SMC
Breaker & RelayUSA Honeywell
Electrical PartsUSA Honeywell
ChillerHanli from China

1) Transport and shipment cost

SteviS: The machine isn't equipped with a fully automatic loader, so the machine dimension is 2160*140*200mm, just only 6cbm. You can see it is not a big area and the transportation cost to new location is small.



2) With the floor layout of the machine, do you need to get to the back of the machine for servicing? Can I have the back of the machine close to the wall?

SteviS: It is recommended to leave a space of 2 meters between the machine and the wall.



3) I would be interested in coming to the factory to get training as we done have a laser here and have not used one before.

SteviS: We all welcome you to come to our factory. Once confirm the machine order, we will arrange production immediately, and then we will invite you to come when machine is finished. I am Looking forward to seeing you at that time.

4) Conditions for placing the machine

SteviS:

1: There should be enough space and a flat floor. Please kindly check the attachment for "machine layout".
2: Keep it as clean as possible and as dust-free as possible.
3: The ambient temperature should not be too hot.

Dont worry, after confirming the order, we will make a VIP service group chat for you and then our engineer will help you and send some related documents for you.



5) With regards to the technical training offered, is that done online or should I attend your factory for training?

SteviS: If you have experience in operating laser machines before, it is easy for you to start and run our ST-FL40. If not, that is ok, we can also offer online support to you.

Considering that if it is your first time to use our laser tube cutting machine, we recommend sending our engineer to your factory for installation, debugging and providing training, which will be helpful for machine subsequent usage. Or you can come to our factory for training.

6) In Australia we have 240V single phase power and 415V three phase power. I see your machine required 380V 3 phase.

SteviS: Yes, our machine standard Voltage is 380V 50HZ 3phase. Generally, we will recommend customers to use voltage stabilizer to make sure offer stable power to the machine. Our voltage stabilizer is suitable for 380V-430V, so it can fit to use our machine in your country.
