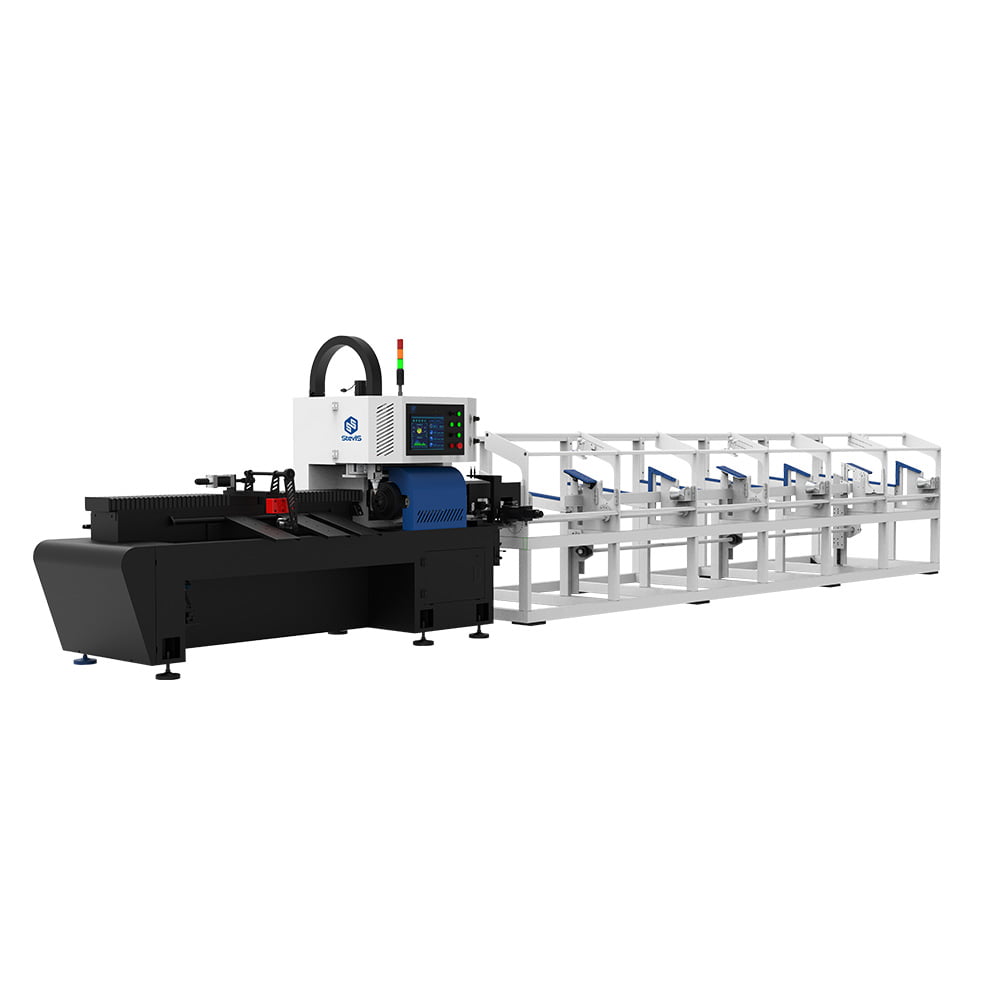

Especially designed for round tube straight cut off, easy to operate

- Applicable types of tubes: outer diameter 14-65mm

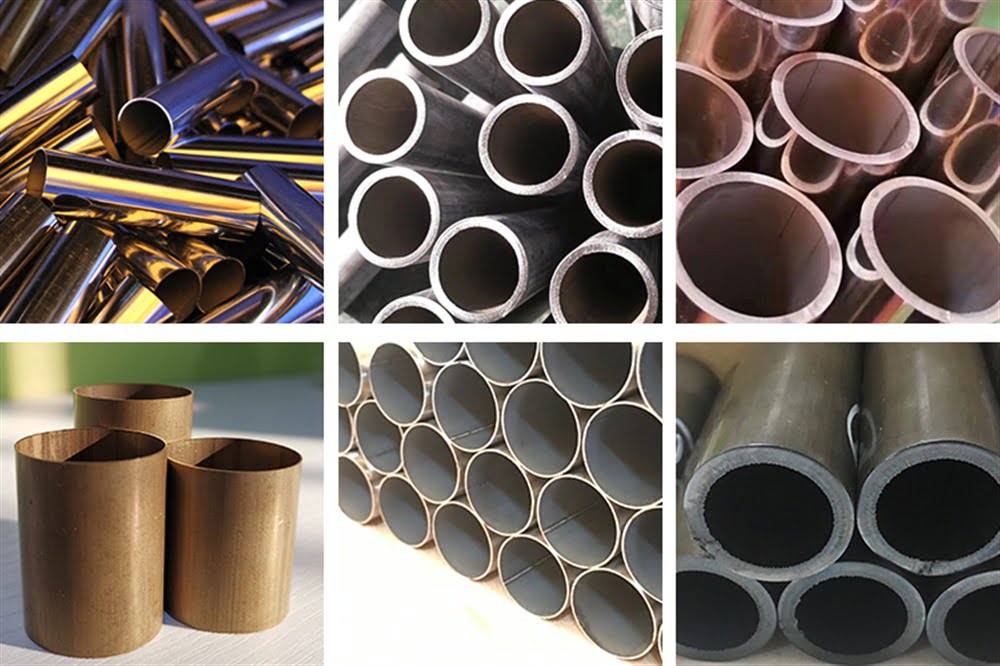

- Applicable types of material: Stainless steel, Mild steel, Carbon steel, Iron, Galvanized steel, Brass, Aluminum, Copper

Fully automatic loading, feeding and cutting system

- Skip production processes and minimize the labor costs and consumables.

- Each machine can help save 3-5 workers comparing to saw blade cutting machine, greatly reduce the labor cost.

High speed, smooth and burr-free cutting

- Faster than circular sawing machines, can reach less than 1 second/cut

- The shortest tail material can reach 40mm

Cutting capacity

MaterialDiameter * Thickness * LengthCutting Capacity
Stainless Steel12*0.4*252mm1, 500pcs/hour
Carbon Steel10*1.0*615mm1, 200pcs/hour
Carbon Steel9.8*0.8*465mm2, 000pcs/hour

Pipes head sensed and cut automatically by machine

- pipes head and tail material can be separated with workpieces automatically

- The length of tail material can be less than 40mm

Special spatter reduced function for inner wall cleaning

- The spatter will inevitably adhere to the inner wall of tubes during the laser cut processing. Therefore, we can add an automatic spatter reduced device to ensure that the inner wall of the finished product remains clean.

The maximum cutting length can be customized designed. (Maximum 3 meters)

Model No.ST-FL70F
Outside Diameter8-68mm
Cutting Length10-1500mm
Laser Power1000-2000W
Laser SourceMAX/RAYCUS/IPG
Laser HeadRaytools/OSPRI
L*W*H (mm)8700X1800X1900mm
Voltage380V 50Hz 3Phase (can be customized)
Servo motor & driverDELTA
Pneumatic systemAIRTEC
Electrical proportional valveSMC
Air switch & relaySCHNEIDER
Power supplySIEMENS

1.Does the machine have automatic lubrication system?
Yes, our machine has automatic lubrication system. You can set the lubrication time and interval time as needed.

2. How does the machine determine the center line of the tubing if the tube is slightly bent?
Our laser head has scanning function to check the tube bending degree and the control system will automatically compensates. You can also set in the system for it.

3. We have one pipe tube that is mid carbon content(SAE1020), diameter 10mm*1.25mm(wall thickness) , is this ok for machine?
Yes, this pipe is ok for our model LX-FL40. It is suitable for pipe diameter below 42mm, steel / stainless steel thickness within 3mm under 1000W laser power.

4. How many hours of working life has the laser? What is the spare part cost approximately?
Laser source life 100,000 hours (more than 20 years). Spare part is the protective lens and nozzle of the laser head. Each can use 2-5 months, we offer each 5pcs for spare and free of charge. For additional quantity, each cost 16USD/ pc.

5. Is there a difference between MAX / RAYCUS / IPG?
The quality of lasers made in China is gradually mature and stable. According to our testings, Max and Raycus are similar in performance.

IPG is rarely used in the market within 6KW, unless customers concern on the brand and do not care about the cost.
This is because IPG does not show obvious difference from the other two within 6KW power.The share of IPG lasers in China is also declining year by year, in 2018 was 48% and went down to 30% 2019. The share of Max and Raycus are similar, both about 20%.

In addition, the laser source is only one part of the machine. Customers should pay more attention on the performance and efficiency of the whole equipment.

6. Regarding stabilizing electric transformer, for 220V 60hz e phase, how many KVA is required?
The transformer capacity is depends on the laser power. For laser power 1000W, it requires 40KVA.

7. PLC, has English or maybe Spanish language?
Our touch screen has both English and Chinese language. We can add Spanish or other language with your help for the translation.

8. Can we send you sample of our pipe in order for you to show us cutting of our material?
Yes, we always welcome customer send us their pipe for testing. Kindly send us pipe length ≥600mm, qty ≥ 3pcs for each size. The longer size and the more quantity the better.

9. What is the material loss every time laser cuts? I mean, when laser is cutting what is the length waste for every cut?
The laser cutting loss is very small, only 0.05-0.1mm/cut, while saw cutting loss would be about 2-5mm/cut.

10. After laser cuts, is the edge hardened by the laser temperature? Can we flare pipe easily without problem after cutting?
The hardening effects are different on different pipe materials. We suggest customers send us their tubes for testing and check the result.

11. Under what circumstances should I choose to use a laser machine?
If cutting quantity is more than thousand pieces per day, we suggest laser machine. As it has advantage on the cutting loss, operation cost(0.6USD/hour) and high efficiency(fast and no burr). In long term usage, laser machine can bring you more profits.

12. When can it cover the machine cost and gain profits for me?
According to our surveys, usually it would take about 0.5 to 1.5 years for our customers to cover the machine cost by the profits they obtained on the laser machine.
