Recently, several customers who produce furniture have purchased FL80F and TP120 series fully automatic high-speed metal pipe laser cutting machines from us.

Some customers will feel curious during the process of communicating with us.

• "Why do you recommend the TP120 series to us although we ask you for details about FL80F?"

Maybe you can understand the differences between FL80F and TP120 laser pipe cutting machines through this sheet.

Model		ST-FL80F	ST-TP120

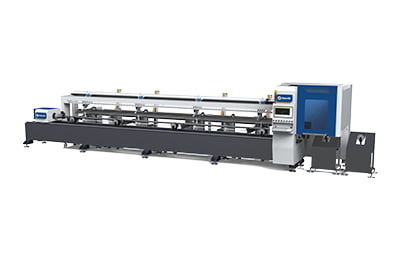

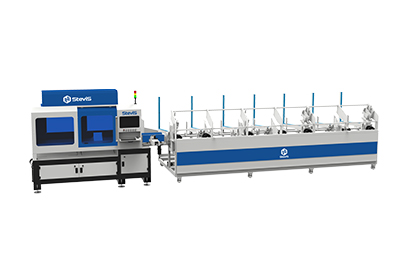

Machine photo
Application size range	Round tube	Φ16 - 85mm	Φ 16 - 120mm
	Square tube	16x16 - 60x60mm	16x16 - 120x120mm
	Rectangular tube and other shaped profiles	Diagonal 16 - 85mm	Diagona16 - 120mm
Tube length		≤ 6500mm	≤ 6200mm
Acceleration		1.6G
Length of tail material		≥40mm	60-200mm
Cutting accuracy		±0.2mm	±0.15mm
Clamp set		One set of clamp for each size	Universal pneumatic chuck, no need to change clamps
Cutting length		Usually maximum 2 meters	No requirement for cutting length, faster in cutting long workpieces (At least 2 meters)
Waste separate function		√	×
Process type		Multifunctional cutting (cutting holes, profiles, etc.)
Loader type (Optional)		Manual / Fully automatic loading / Slide loader (Optional)
Dimension		8500*1700*2150mm	9500*1300*2200mm
Machine weight		4000kg	5000kg
Machine video		https://youtu.be/_3tIUJVRq-s	https://youtu.be/IMbnOV0i3sg

ST-FL80F video:

ST-TP120 video:
